Using gold in the production of IC chips

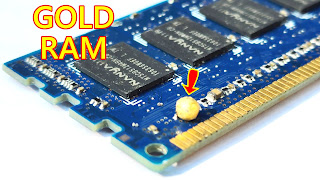

 Gold wires are commonly used in the construction of random access memory (RAM) integrated circuit (IC) chips, particularly in dynamic random-access memory (DRAM) and static random-access memory (SRAM) chips.

In RAM IC chips, gold wires play a crucial role in establishing electrical connections between the semiconductor die (the silicon chip containing the memory cells and circuitry) and the package leads or substrate. These electrical connections are essential for transferring data and control signals to and from the memory chip.

Here are some specific reasons why gold wires are used in RAM IC chips:

1. Conductivity: As mentioned earlier, gold has excellent electrical conductivity, which is essential for the fast and efficient transfer of data in RAM chips, where speed is critical.

2. Corrosion resistance: The corrosion resistance of gold ensures the long-term reliability of the electrical connections within the RAM chip, even in harsh environments or over extended periods.

3. Wire bonding process: The wire bonding process used in RAM chip assembly often involves ball bonding or wedge bonding techniques, which work well with gold wires due to their ductility and bondability.

4. Reliability and signal integrity: The use of gold wires helps maintain signal integrity and reduces the risk of signal loss or distortion, which is crucial for the proper functioning of RAM chips.

5. Thermal stability: Gold wires exhibit good thermal stability, which is important as RAM chips can generate heat during operation, and the electrical connections must remain stable under varying temperature conditions.

While the use of gold wires increases the manufacturing cost of RAM chips, their superior properties make them a preferred choice, particularly for high-performance, high-reliability, and mission-critical applications, such as server memory, military and aerospace systems, and other demanding environments.

It's worth noting that, in some cases, alternative materials like copper or aluminum may be used for cost-saving purposes in less demanding applications, but gold remains the material of choice for high-end RAM IC chips.

The use of gold in the production of integrated circuit (IC) chips is a crucial aspect of the semiconductor manufacturing process. Gold plays several important roles in IC chip fabrication due to its exceptional properties, such as high electrical conductivity, resistance to corrosion, and malleability. Here are some key applications of gold in IC chip production:

1. Wire bonding: Gold wires are used to create electrical connections between the semiconductor die (the active component of the chip) and the package leads or bonding pads. This process, known as wire bonding, is essential for establishing electrical pathways between the chip and the external circuitry. Gold is preferred for wire bonding due to its excellent conductivity and resistance to corrosion.

2. Metallization: Gold is used as a metallization layer in certain IC chips, particularly in high-performance and high-reliability applications. Gold metallization layers serve as interconnects, carrying electrical signals between various components within the chip. Gold's exceptional electrical conductivity and resistance to electromigration (the gradual movement of metal atoms in conductors due to high current densities) make it a suitable choice for these critical interconnects.

3. Bonding pads: Gold is often used to create bonding pads on the chip surface. These pads provide connection points for wire bonding or flip-chip bonding, allowing the chip to be electrically connected to the package or substrate.

4. Electroplating: Gold electroplating is sometimes used as a final step in the IC chip manufacturing process. A thin layer of gold is deposited on the chip surface, providing protection against corrosion and improving the electrical properties of the chip.

5. Soldering and die-attach: Gold-based solders or conductive adhesives are sometimes used for die-attach processes, where the semiconductor die is attached to a package or substrate. Gold's high thermal conductivity and resistance to oxidation make it suitable for these applications.

It's important to note that while gold is widely used in IC chip production, its usage is typically limited to small amounts due to its high cost. Manufacturers often aim to minimize the amount of gold used while still meeting the necessary performance and reliability requirements. Additionally, alternative materials, such as copper or aluminum, are sometimes used in certain applications to reduce manufacturing costs.

Some people have different opinions on the reasons for using gold in the manufacture of IC chips.

Yes, there are some disadvantages of using gold in computer chips. Gold is an expensive material, which makes it difficult for computer chips to be mass produced. Additionally, gold is a soft material, and it can be easily damaged or corroded, which can lead to decreased performance over time.

Oxidation: Gold is generally resistant to corrosion, but it can still oxidize under certain conditions, which can affect the performance of the chip over time.

Thermal conductivity  Gold is not as thermally conductive as some other metals, such as copper. This can cause heat buildup in the chip, which can lead to reliability issues and even damage the chip over time.

Bonding issues Gold bonding wires can be difficult to work with, and can break or become detached during the manufacturing process, leading to defects in the chip.

Complexity  Using gold in computer chips can make the manufacturing process more complex, requiring additional steps and specialized equipment, which can increase production costs.

Accessibility Gold is not always accessible or easily repairable. In cases where chips need to be serviced or repaired, using gold can make the process more difficult and expensive.

It's worth noting that some of these potential disadvantages may be mitigated through proper design and manufacturing techniques. Additionally, gold is still used in certain specialized applications where its unique properties may be advantageous, despite the potential drawbacks.

Maybe in the future gold may not be needed in production if better and cheaper materials are available.

Extracting gold from old computer parts can be done, but it involves using chemicals and processes that require proper safety precautions. Here are some typical steps for extracting gold from electronic waste:

1. Disassembly

First, the computer components like circuit boards, RAM, CPUs need to be manually disassembled to separate the metal-containing parts from plastic casings.

2. Shredding/Pulverizing

The metal-containing components are then shredded or pulverized into a fine powder/dust to increase surface area exposure.

3. Acid Leaching

The pulverized material is treated with acid solutions like aqua regia (nitric + hydrochloric acids) or cyanide leaching to dissolve and separate the gold from the other metals.

4. Filtration

The acid solution containing the dissolved gold is filtered to remove solid contaminants.

5. Precipitation

Chemical precipitants like sodium metabisulfite or ferrous sulfate are added to cause the gold to precipitate out as solid particles from the filtered acidic solution.

6. Refining

The gold precipitate is further refined by melting/smelting processes to remove remaining impurities and extract pure gold metal.

A few important notes:

- These processes use extremely hazardous acids/chemicals requiring proper ventilation and safety gear.

- Cyanide leaching is highly toxic and tightly regulated due to environmental risks.

- Acids like aqua regia can dissolve many metals, not just gold, so purification is critical.

- The amount of gold recovered may be minimal compared to the effort required.

While possible, extracting gold from e-waste at home is generally not recommended due to safety risks. Industrial e-waste recycling facilities have proper equipment and controls for this process.
